Solid Brass Rain Lamp Drip Nozzles – 28 Complete Pairs

Solid Brass Rain Lamp Drip Nozzles – 28 Complete Pairs

Replacement solid-brass drip nozzles designed for the restoration and restringing of vintage and modern rain lamps.

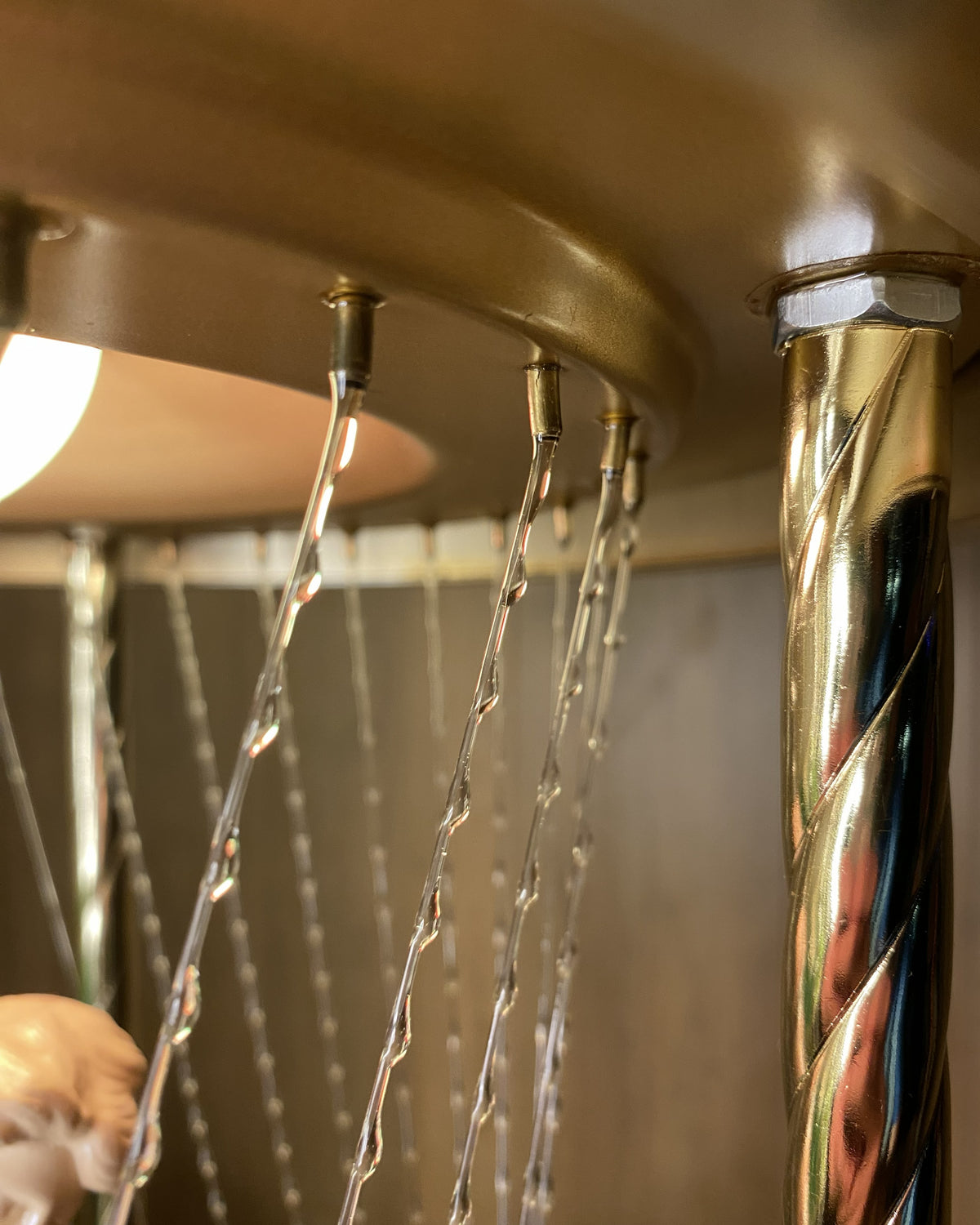

On rain lamps equipped with removable metal nozzles, these small components perform an essential function: they position and secure the drip line while controlling the point where oil enters the line to create the lamp’s characteristic rainfall effect.

Developed from original Johnson Industries components as well as the nozzles used in modern Rain Oil Lamps models, these replacements provide a new-production option for restoring lamps with missing, damaged, worn, or mismatched original nozzles.

Features

• Solid-brass construction
• 28 complete two-piece nozzle assemblies
• 56 individual brass components total
• Designed as a replacement for vintage two-piece metal rain lamp nozzles
• Helps secure the drip line and maintain proper line tension
• Provides the outlet needed for oil to form droplets and travel down the drip lines
• Enough for most large single-curtain rain lamps

Compatibility

Designed for rain lamps that use removable, two-piece metal drip nozzles, including:

• Johnson Industries rain lamps
• Creators Inc. rain lamps

• Rain Oil Lamps models

• LumiRuiss rain lamps

• Cheyenne rain lamps
• Many other vintage and modern rain lamps using the same style of removable nozzle

These are intended as a universal replacement for rain lamps using this common two-piece metal nozzle design.

Important: Not every rain lamp uses removable nozzles. Some models, including certain Creators Inc. lamps, were manufactured with drip outlets molded directly into the plastic platform and do not use this type of component. Inspect your lamp before ordering to confirm that it uses removable two-piece nozzles.

For double-curtain or double-string rain lamps with two sets of drip lines, count the existing nozzle positions before ordering. Two packages may be required.

Included

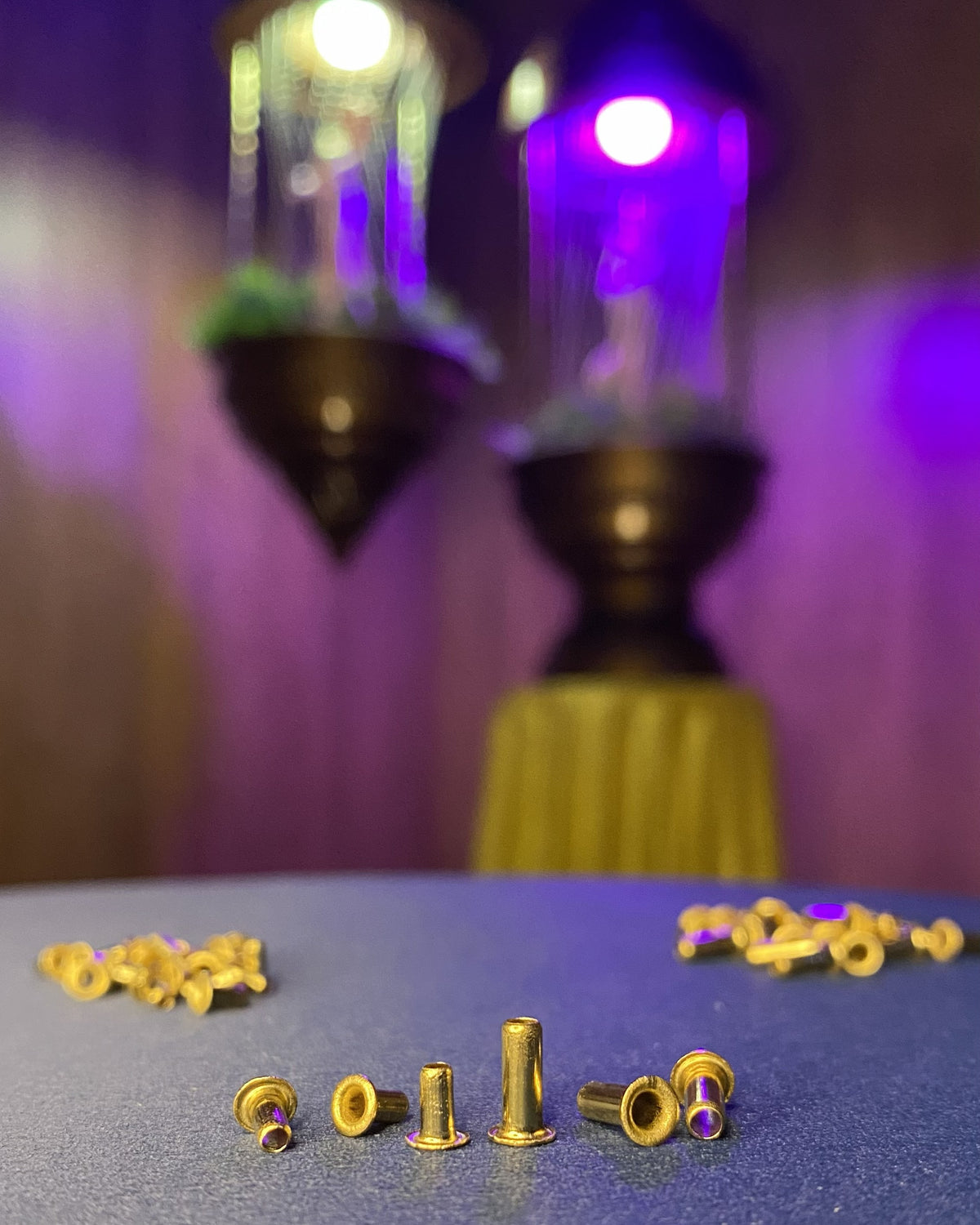

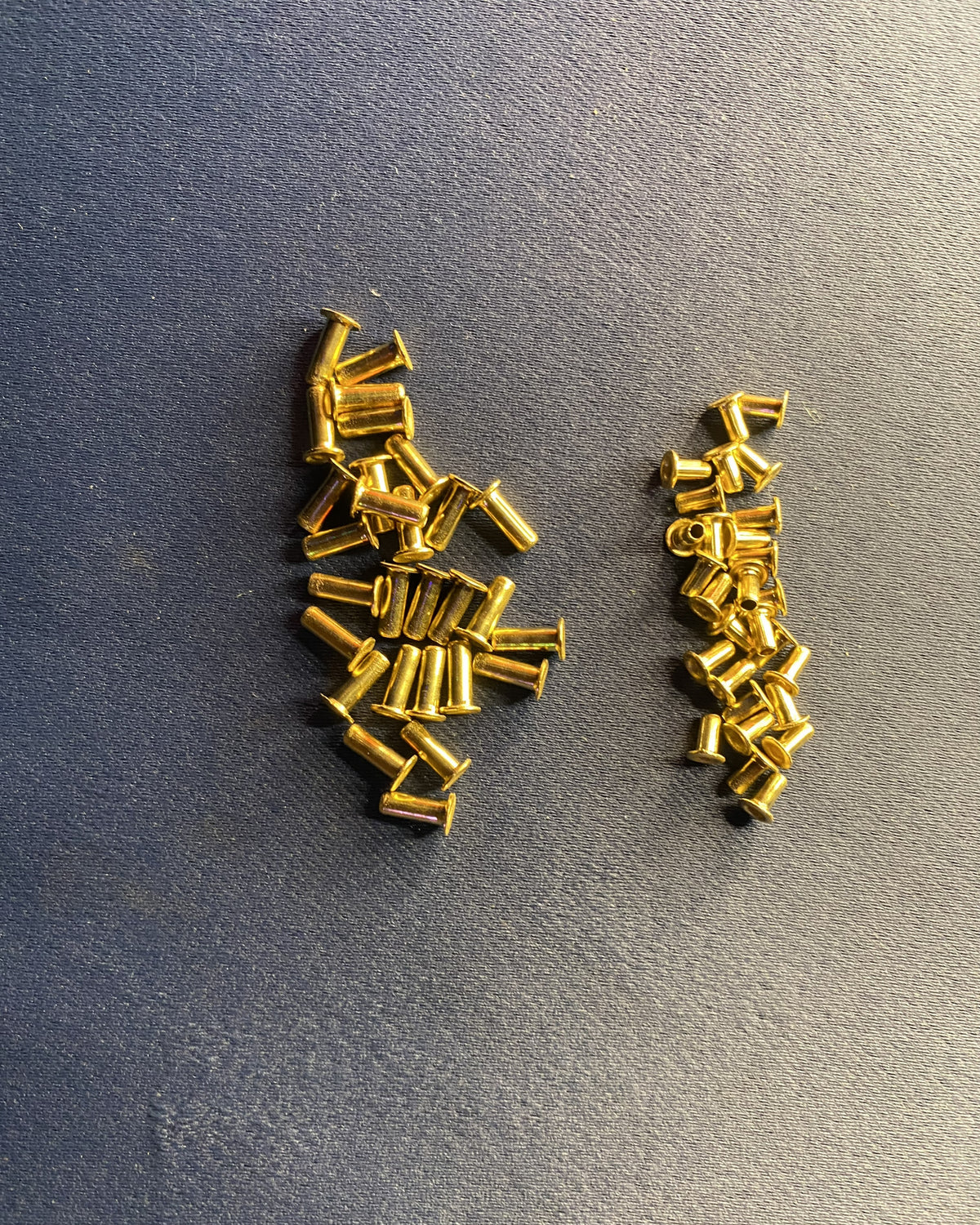

• 28 outer brass drip nozzles
• 28 brass retaining inserts
• 28 complete nozzle pairs
• 56 solid-brass pieces total

One package provides enough nozzles for most single-curtain rain lamps, including larger models.

How They Work

The outer drip nozzle installs into the corresponding opening in the lamp’s upper platform. During restringing, the drip line is routed through the nozzle and down through the lamp.

Once the lamp has been strung, the smaller retaining insert is installed inside the outer nozzle. The insert captures the drip line, helps lock it in position, and maintains the tension necessary for a properly strung rain lamp.

Together, the two pieces create the nozzle assembly through which oil is introduced to the drip line, allowing individual droplets to form and produce the familiar continuous rainfall effect.

Installation Notes

Installation of the retaining inserts requires firm, controlled pressure and is difficult to accomplish by hand alone. An appropriate setting tool is strongly recommended.

For best results, review the installation process before replacing or restringing an entire set.

Specifications

Additional Notes

Rain lamp construction varied considerably between manufacturers and production periods. Before ordering, inspect your lamp to confirm that it uses removable two-piece metal drip nozzles.

For lamps with two curtains of drip lines, count the required nozzle positions before ordering; two sets may be necessary.
